Qingdao Nanchen Z95 Series Hot Box Core Shooter
Qingdao Nanchen Z95 Series Hot Box Core Shooter is specially designed for mass production of casting cores with medium size, complex shape and large inner cavity. Relying on technological innovation and practical design, it provides casting enterprises with a core forming solution integrating precision, energy saving and low cost, and fully meets the production needs of enterprises of different scales worldwide.

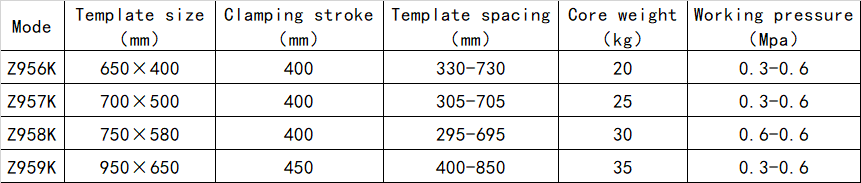

In terms of parameter configuration, this series of core shooters includes four main models. The mold plate size ranges from 650×400mm to 950×650mm, and the core load-bearing capacity ranges from 20kg to 35kg, which can adapt to the core forming needs of castings of different specifications. The working pressure is stably maintained at 0.3-0.6MPa, the mold plate spacing can be freely adjusted from 295mm to 850mm, and combined with the mold clamping stroke of 400-450mm, it ensures the forming precision and consistency of various complex cores.

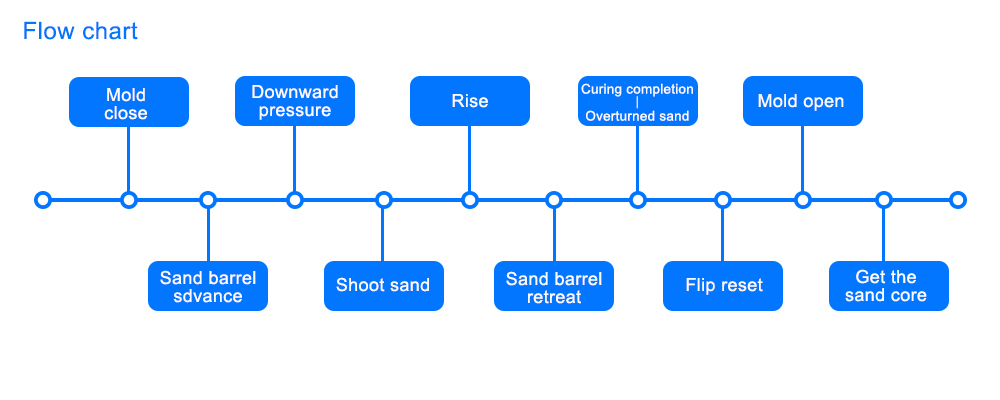

In terms of structural design, the equipment is equipped with a PLC control system and a top blowing device, realizing rapid core forming through an automated process. The unique flipping function can discharge and reuse the non-curable sand inside the core, greatly reducing the consumption of coated sand and cutting costs from the source. Meanwhile, a single core shooter can replace 3-5 manual workers, significantly lowering labor costs and avoiding human operation errors. Its modular design enables convenient assembly and disassembly, supports customized adjustments, and can be integrated into various casting production lines without large-scale modification.
In terms of application scenarios, the Z95 Series Core Shooter has wide adaptability. Whether in the fields of auto parts, mechanical equipment accessories or construction machinery core components, as long as it involves the production of castings with medium size, complex shape and large core inner cavity, this series of equipment can provide stable and reliable core forming support. At present, automation, energy saving and green development have become the development trends of the casting industry. With its high-efficiency and energy-saving features, the Z95 Series Core Shooter perfectly complies with this industry trend, which not only meets the requirements of environmental protection policies of various countries, but also helps enterprises seize the initiative in the green transformation.
In terms of operation and safety, this series of hot box core shooters fully considers the usage habits and safety requirements of global users. The equipment features a simple operation process, which can be quickly mastered without professional technical background, greatly reducing the enterprise's training costs. Meanwhile, the equipment strictly complies with casting safety standards, avoids production risks from the design source, and builds a safe and stable production environment for customers.
To better serve global customers, Qingdao Nanchen will provide comprehensive support and services for the Z95 Series Hot Box Core Shooter: from the preliminary customized solution design and technical parameter adaptation, to the mid-term installation, commissioning and operation training, and then to the later spare parts supply and remote technical support, Qingdao Nanchen will escort customers throughout the whole process.
